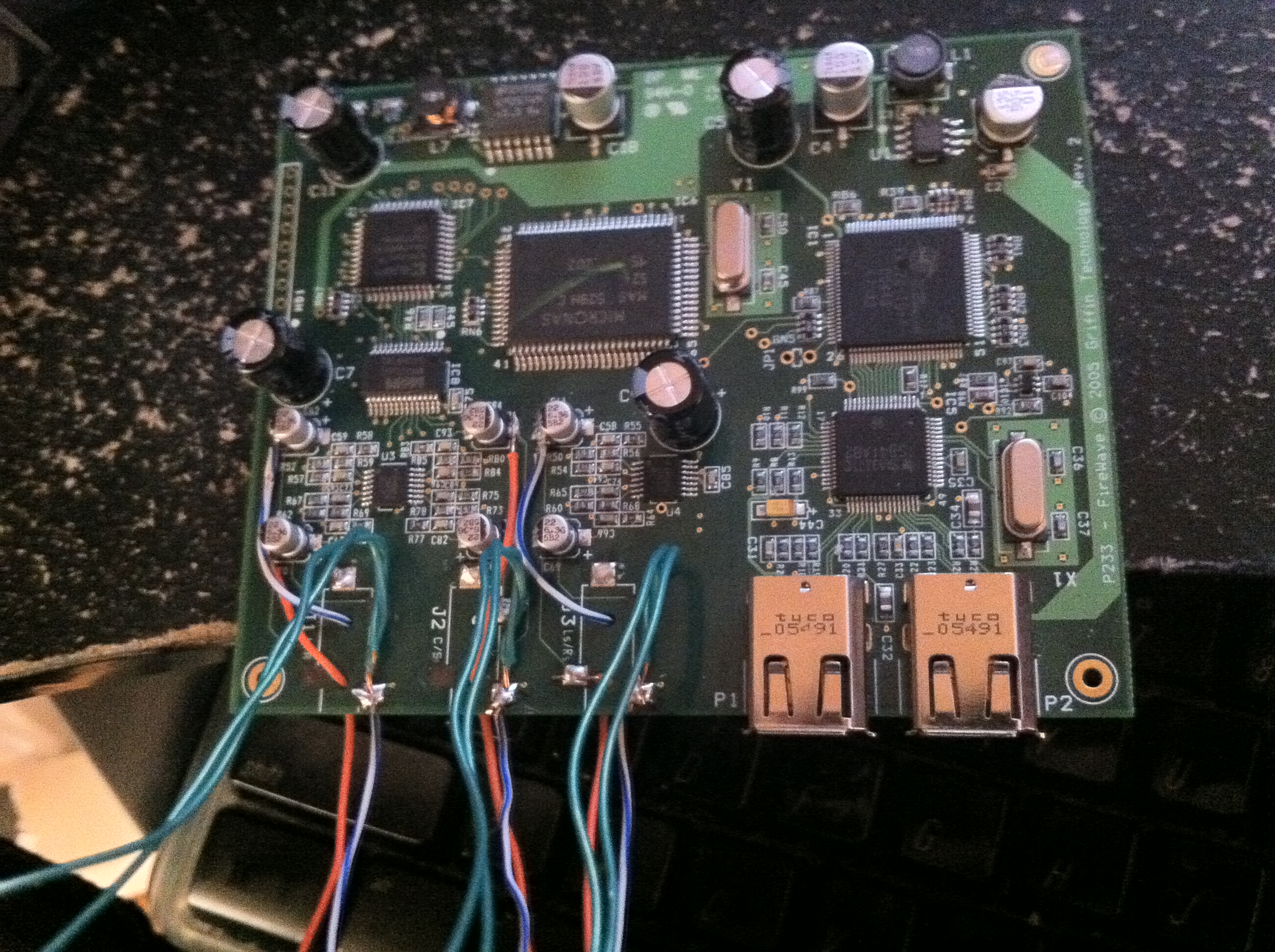

This is the Griffin Firewave after I removed the old headphone jacks. If you look closely at where the left and middle jacks were, a few of the square copper pads they had soldered onto lifted off the PCB during desolder. Each one was traced back to a leg of one of the nearby capacitors, so I was able to solder my new wiring to those instead.
